Note: When using the 18650 battery,you need to tear up the transparent pieces on the battery sides to make sure the good connection.
Flashlight Specification:
| Product name: | BLF A6 XPL EDC LED Flashlight |
| Brand: | BLF |
| Model: | A6 |
| Emitter Type: | XPL |
| Circuit Driver: |

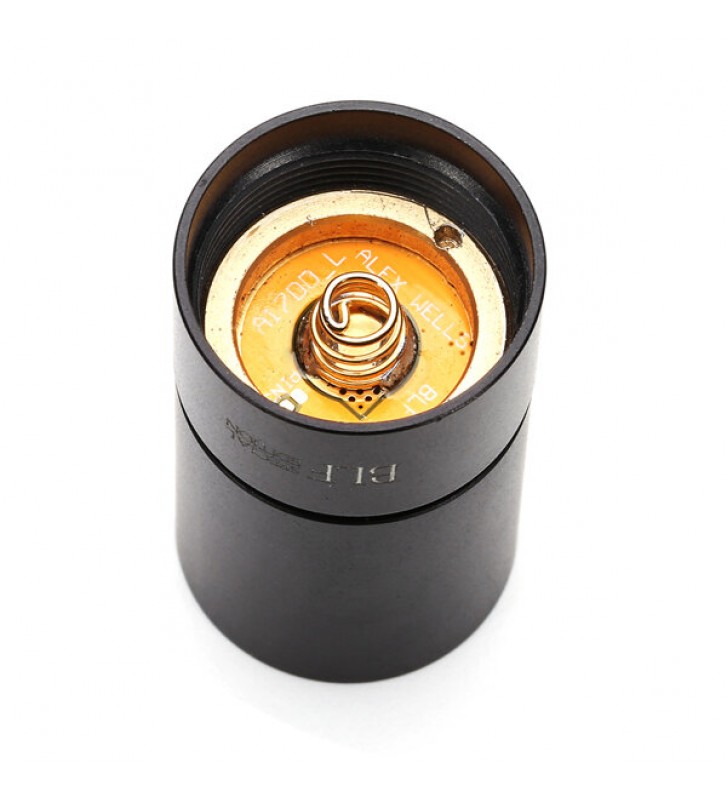

A17DD-L FET+1 Driver
|
| Light Tint: |
3D (5000K), 1A (6500K), 5A(4000K) 3D Neutral white,1A Cool light,5A Very yellow light |
| Material: | Constructed from aero grade aluminum alloy |
| Mode: |
Group 1:Moon-Low-Med1-Med2-High1-High2-Turbo(Short press<0.5s) Group 2: Low,Med,High,Turbo (Short press<0.5s) + Moon-Turbo-Tactical Strobe-Battcheck-Bike Flasher (Medium press 0.5s-1.5s) |
| Battery Configurations: | 1 x Astrolux® E1825 2500mAh 18A 3.7V 18650 Li-ion Battery (included) |
| Switch Type: | clicky |
| Switch Location: | tail of the flashlight |
| Impact Resistant | 1 meter |
| Max Output: | 1600lumens (max) (use 18650 battery) |
| Working Voltage: | 2.8-4.35v |
| Lens: |
Toughened ultra-clear mineral glass with anti-reflective coating |
| Reflector: | Orange Peel Reflector |
| Carrying Clip | included |
| Waterproof: | IPX-8 waterproof 2 meters |
| Color: | black |
| Weight: | 80g without battery |
| Size: | 120mm x 24mm(length x body diameter) |
Battery:
Model: 18650
Nominal voltage: 3.6V
Discharge cut-off voltage: 2.5V
Nominal discharge capacity: 3000mAh
Charge: 1.50A, 4.20V,CCCV 150mA cut-off
Discharge: 0.2C, 2.5V discharge cut-off
Standard charge: CCCV, 1.50A, 4.20 ± 0.05 V, 150mA cut-off
Rapid charge: CCCV, 4A, 4.20 ± 0.05 V, 100mA cut-off
Charging time: Standard charge : 180 min / 150mA cut-off Rapid charge: 70 min (at 25 °C) / 100mA cut-off
Max. continuous discharge: 15A(at 25°C), 60% at 250 cycle
Cell weight: 48.0g
Cell dimension: 64.85 ± 0.15mm(H)X18.33 ± 0.07mm(D)
More Information From BLF:
- First BLF light with our own custom driver.
- First BLF light with our own custom firmware.
- First special-edition with a direct-drive FET, so it has the
brightest turbo mode you can get.
- First special-edition with a regulated lower-power second channel
for stable and efficient low modes.
- True moon mode.
- Up to 1600 lumens from a single emitter in a small tube light (with
the right battery, and a spring bypass mod). Closer to 1400 lumens
with no mods and lower-amp batteries.
- User-toggle-able mode memory.
- User-toggle-able mode groups.
- Well-spaced visually-linear output modes.
- Includes some hidden modes for those who want them.
- Battery check mode!
- First clicky-switch stock light with both forward and backward mode
navigation in a single tap (short/medium press).
- With mode memory off, the user can access 4 different modes
(including the highest and lowest) within 1 second.
- Fast PWM so the pulsing won't be visible.
- The firmware and the driver designs are available for anyone who
wants to modify them.
- First BLF light with our own custom firmware.
- First special-edition with a direct-drive FET, so it has the
brightest turbo mode you can get.
- First special-edition with a regulated lower-power second channel
for stable and efficient low modes.
- True moon mode.
- Up to 1600 lumens from a single emitter in a small tube light (with
the right battery, and a spring bypass mod). Closer to 1400 lumens
with no mods and lower-amp batteries.
- User-toggle-able mode memory.
- User-toggle-able mode groups.
- Well-spaced visually-linear output modes.
- Includes some hidden modes for those who want them.
- Battery check mode!
- First clicky-switch stock light with both forward and backward mode
navigation in a single tap (short/medium press).
- With mode memory off, the user can access 4 different modes
(including the highest and lowest) within 1 second.
- Fast PWM so the pulsing won't be visible.
- The firmware and the driver designs are available for anyone who
wants to modify them.

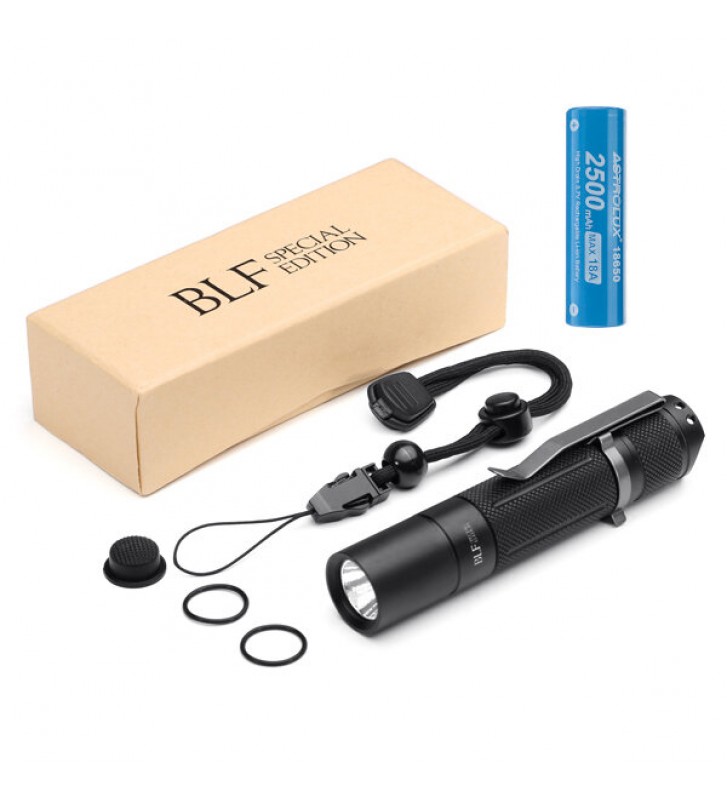

Package included:
1 x BLF A6 UI XPL EDC LED Flashlight
1 x Astrolux® E1825 2500mAh 18A 3.7V 18650 Li-ion Battery
1 x Deep Carry Pocket Clip
1 x Gift Box
1 x Extra o-rings
1 x Extra button
More item information click BLF Forum
About modes click BLF EE A6 firmware
Product discuss from BLF Forum member: http://budgetlightforum.com/node/41581
